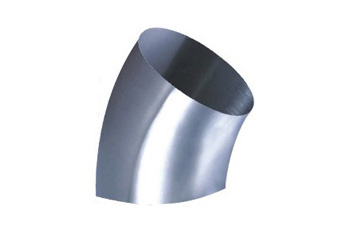

焊接式弯头(45°)
|
|
Size
|
L1
|
D
|
R
|
|
1″
|
15.8
|
25.4
|
38.1
|
|
11/2″
|
23.8
|
38.1
|
57.2
|
|
2″
|
31.8
|
50.8
|
76.2
|
|
21/2″
|
39.7
|
63.5
|
95.3
|
|
3″
|
47.6
|
76.2
|
114.3
|
|
4″
|
63.5
|
101.6
|
152.4
|
|
6″
|
94.7
|
152.4
|
228.6
|
|
焊接式弯头(45°)
|
|
|
Size
|
L1
|
D
|
R
|
|
DN10
|
10.7
|
12.0
|
26.0
|
|
DN16
|
14.5
|
18.0
|
35.0
|
|
DN20
|
16.5
|
22.0
|
40.0
|
|
DN26
|
20.7
|
28.0
|
50.0
|
|
DN32
|
22.8
|
34.0
|
55.0
|
|
DN40
|
24.8
|
40.0
|
60.0
|
|
DN50
|
29.0
|
52.0
|
70.0
|
|
DN66
|
33.2
|
70.0
|
80.0
|
|
DN80
|
37.3
|
85.0
|
90.0
|
|
DN100
|
41.5
|
104.0
|
100.0
|
|
DN125
|
77.5
|
129.0
|
187.0
|
|
DN150
|
93.2
|
154.0
|
225.0
|
|
焊接式弯头(45°)
|
|
|
Size
|
L1
|
D
|
R
|
|
1″
|
13.9
|
25.4
|
33.5
|
|
11/4″
|
15.7
|
32.0
|
38.0
|
|
11/2″
|
20.1
|
38.1
|
48.5
|
|
2″
|
25.1
|
50.8
|
60.5
|
|
21/2″
|
34.6
|
63.5
|
83.5
|
|
3″
|
36.7
|
76.2
|
88.5
|
|
31/2″
|
42.9
|
89.0
|
103.5
|
|
4″
|
52.6
|
101.6
|
127.0
|
